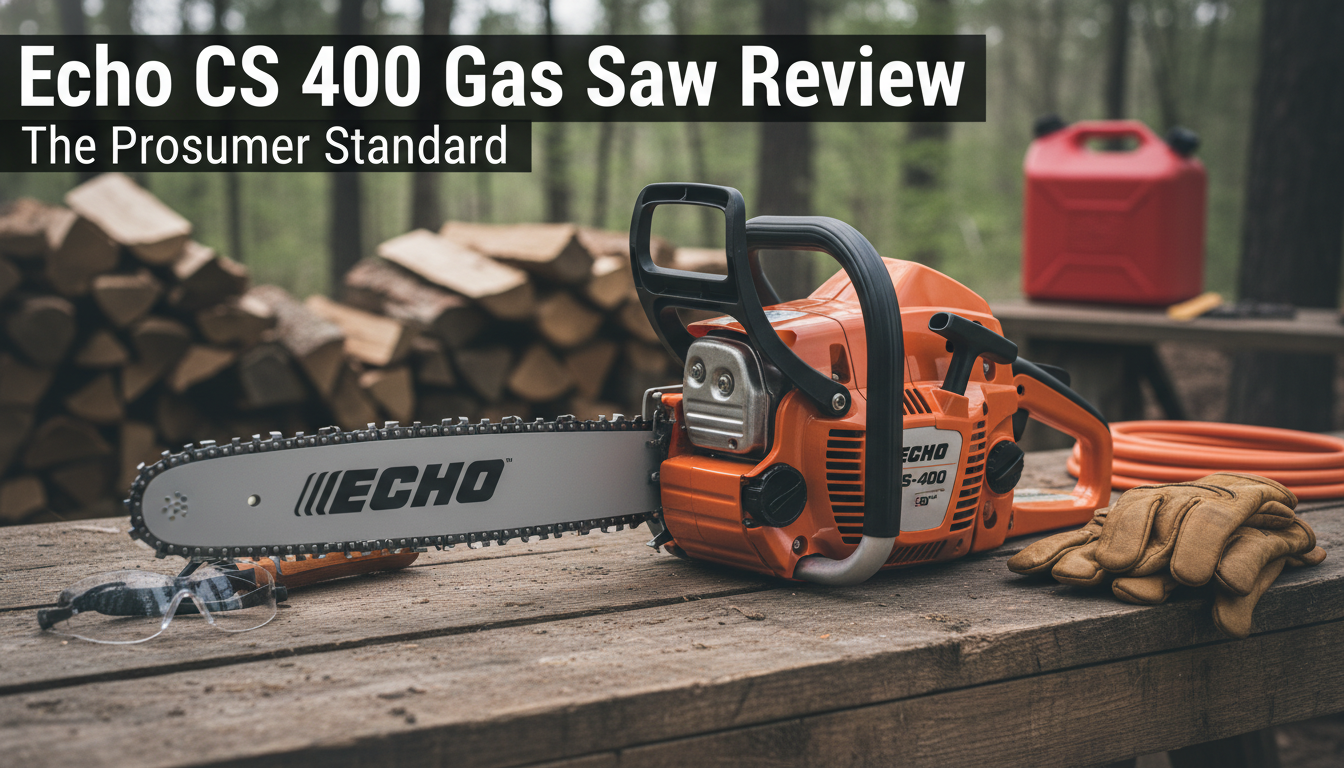

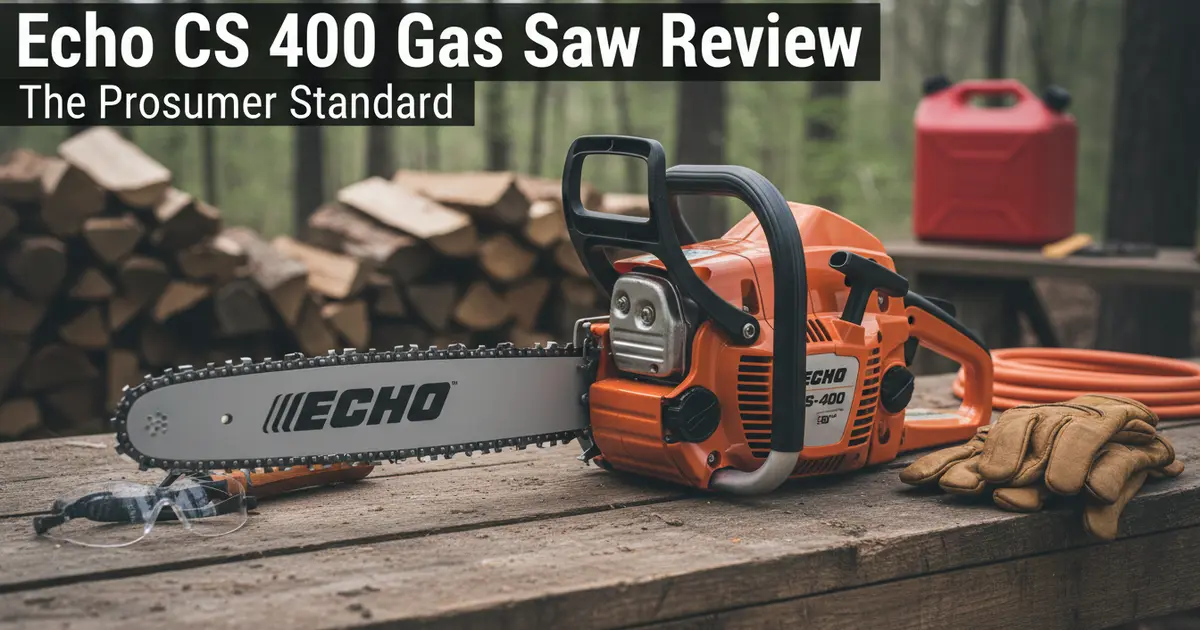

Echo CS 400 Gas Saw Review: The Prosumer Standard for Performance
The Echo CS-400 occupies a sweet spot in the chainsaw market, blending professional-grade components with ergonomic design for high-end residential use. Its 40.2cc power plant delivers consistent lugging power for felling medium trees and processing firewood. Unlike entry-level homeowner saws, the CS-400 uses a magnesium crankcase and chrome-plated cylinder for longevity under sustained thermal stress.
Key Advice: An 18-inch bar is the sweet spot for this saw. You get maximum reach without overstressing the 40.2cc engine. Don’t push to 20 inches.
Quick Comparison: 40cc Class Performance
| Model | Engine Displacement | Weight (Dry) | Best For | Crankcase |
|---|---|---|---|---|
| Echo CS-400 | 40.2 cc | 10.1 lbs | Prosumer Versatility | Magnesium |
| Husqvarna 435 | 40.9 cc | 9.2 lbs | Lightweight Limbing | Composite |
| Husqvarna 440 | 40.9 cc | 9.7 lbs | All-Round Cutting | Composite |
| Husqvarna 445 | 45.7 cc | 10.8 lbs | Heavy Duty Tasks | Composite |
Technical Engineering Breakdown
Lugging Power and Engine Dynamics
The CS-400’s 40.2cc professional-grade two-stroke demonstrates exceptional lugging power — maintaining chain speed under heavy load without stalling. This comes from Echo’s precision porting and a high-efficiency carburetor that maintains optimal air-fuel ratio across varying altitudes.
The engine pulls smoothly from idle to full throttle. There’s no flat spot in the powerband, which matters when you’re making long rip cuts through dense grain.
i-30 Starting Technology
The i-30 system reduces pulling effort by 30% through a coil-spring mechanism. This means reliable first- or second-pull starts even in cold conditions. For homeowners who find traditional saws physically demanding, the i-30 is a genuine advancement.
G-Force Engine Air Pre-Cleaner
Centrifugal force spins out larger particles before they reach the air filter, significantly extending maintenance intervals. This is a critical advantage over entry-level filtration found on cheaper competitors.
Chainsaw Safety
Review our Chainsaw Safety Guide before operating. The CS-400 generates over 100 dB of noise and throws chips at over 50 mph. Full PPE is not optional.
Maintenance & Serviceability
The CS-400 is built for easy field maintenance.
- Air Filter: Tool-less cover with a large thumb screw. Clean with compressed air every 5 hours.
- Chain Tensioning: Side-access system. Loosen two bar nuts, adjust via the tensioner screw through the clutch cover.
- Fuel and Oil Caps: Large, easy-grip tabs that work with gloved hands. Clear fuel tank for quick level checks.
- Spark Plug: Accessible with a standard scrench. Replace annually.
The wrap-around handle provides good control for multi-angle cutting. The magnesium crankcase dissipates heat effectively, extending engine life during sustained use.
Hardware Specifications
- Engine Displacement: 40.2 cc
- Starting System: i-30 Reduced Effort
- Ignition System: Digital Electronic
- Oiling System: Automatic/Adjustable (Clutch-Driven)
- Dry Weight: 10.1 lbs (4.6 kg)
- Fuel Capacity: 13.9 fl oz
- Standard Bar Length: 18 inches (16” optional)
- Chain Tensioning: Side-access
For detailed bar and chain matching, see our Stihl Chainsaw Bar Size Guide — the principles apply universally to Echo saws.
Comparison Table: 40cc Prosumer Class
| Feature | Echo CS-400 | Husqvarna 435 | Husqvarna 440 |
|---|---|---|---|
| Displacement | 40.2 cc | 40.9 cc | 40.9 cc |
| Weight | 10.1 lbs | 9.2 lbs | 9.7 lbs |
| Crankcase | Magnesium | Composite | Composite |
| Warranty | 5 Year | 2 Year | 2 Year |
Pros & Cons
Pros
- Build Quality: Professional-grade components with magnesium crankcase.
- Ergonomics: Excellent balance with a wrap-around handle for multi-angle cutting.
- Warranty: Industry-leading 5-year consumer warranty.
- Adjustable Oiler: Fine-tune chain lubrication for different wood densities.
Cons
- Plastic Handle: Rear handle is polymer, not magnesium as on pro models.
- Muffler Design: Stock muffler is restrictive. Muffler mods are common among power users.
Final Verdict
The Echo CS-400 remains one of the most reliable and efficient saws in the 40cc category. It wins on power-to-weight ratio and ease of maintenance against displacement competitors. This is the ideal forever saw for property maintenance.
Deciding between gas and electric for this power class? Our Gas vs Electric Chainsaw guide breaks down the operational costs and performance trade-offs.
SAWOFF Rating: 4.7 / 5
Get out there and cut. Safely.
Frequently Asked Questions
How does the CS-400 compare to the Husqvarna 440?
The Echo CS-400 generally feels more robust due to its magnesium crankcase construction, though the Husqvarna 440 offers the X-Torq engine which is slightly more fuel-efficient.
Can the CS-400 handle a 20-inch bar?
While technically possible, the 40.2cc engine is optimized for 16-inch or 18-inch bars. Moving to a 20-inch bar compromises the saw’s lugging power and increases wear on the clutch.
What fuel mix does the Echo CS-400 require?
It requires a 50:1 ratio of high-quality 89+ octane gasoline and 2-stroke air-cooled engine oil. Using ethanol-free fuel is highly recommended to prevent carburetor issues.
Is the Echo CS-400 a professional saw?
It is marketed as a mid-range or prosumer saw. While it features many professional components like a magnesium crankcase, Echo’s true professional line begins with models like the CS-590 Timber Wolf.
Does the CS-400 have an adjustable oiler?
Yes, the CS-400 features an automatic, clutch-driven adjustable oiler that allows the operator to fine-tune chain lubrication based on wood density and bar length.
What is the warranty on the Echo CS-400?
Echo offers an industry-leading 5-year consumer warranty on the CS-400, which is significantly better than most competitors in this class.
How loud is the Echo CS-400?
The CS-400 operates at approximately 114 dB at full throttle. Hearing protection is mandatory — never operate this saw without proper ear protection.
